Remarkable conjunction of a rail viaduct over a road bridge over a river
Struan Inn
Calvine
The railway northward from Perth was built by the Inverness & Perth Junction Railway whose engineer was Joseph Mitchell (1803-1883). He was the son of the Chief Inspector who worked for Telford on the great road building programme in the highlands, and succeeded his father before turning to railways. In a remarkably short time this 104 mile line between Dunkeld and Forres over difficult terrain was constructed in a mere two years and opened in 1863. As was the case on the Inverness & Nairn, Mitchell designed some impressive bridges and viaducts.

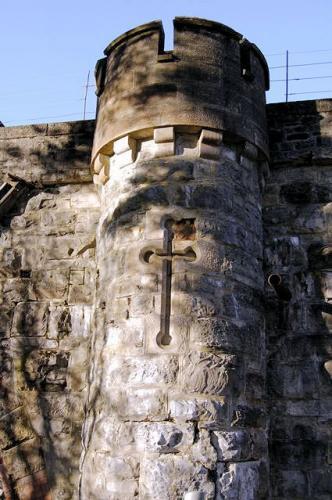

In the area of Blair Atholl it was necessary for the railway company to negotiate with the Duke of Atholl for access to his estate. In order to avoid spoiling the view of falls on the river Garry the railway was carried across the river on a viaduct at the same point as an earlier road bridge. It is a two-span railway viaduct with a segmental arch over a road bridge and a semicircular arch over a river. The arch rings are of dressed stone and the spandrels of rubble. A later steel-truss bridge has been added and now carries the single-track railway. As originally built, it was of stone, measured 83.2m (274 ft) in length by 16.8m (55 ft) in height and comprised two arches, of 24.4m (80 ft) and 12.2m (40 ft) span respectively. A skew bridge carries the road beneath the railway bridge.
In 1899 this part of the railway was doubled and a lattice girder viaduct was built alongside, rather spoiling the appearance of the site. This viaduct carries the Glen Garry portion of the main line of the (Stanley Junction - Inverness) former Highland Rly over the Bruar Water downstream from the Falls of Bruar and about 650m NNW of its debouchement into the Garry Water. The Highland Railway became part of the London, Midland and Scottish Railway in 1923, and the line remains in regular use by passenger traffic.
The road bridge was built in about 1765 as part of the improvement in communication in Scotland. It is Listed Grade B.

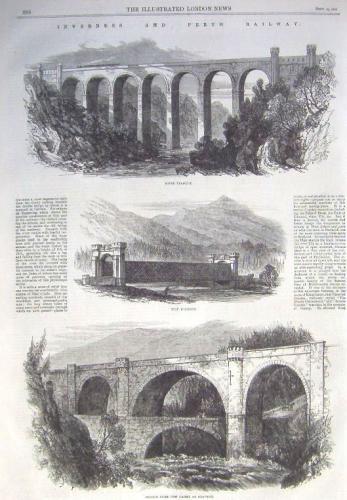

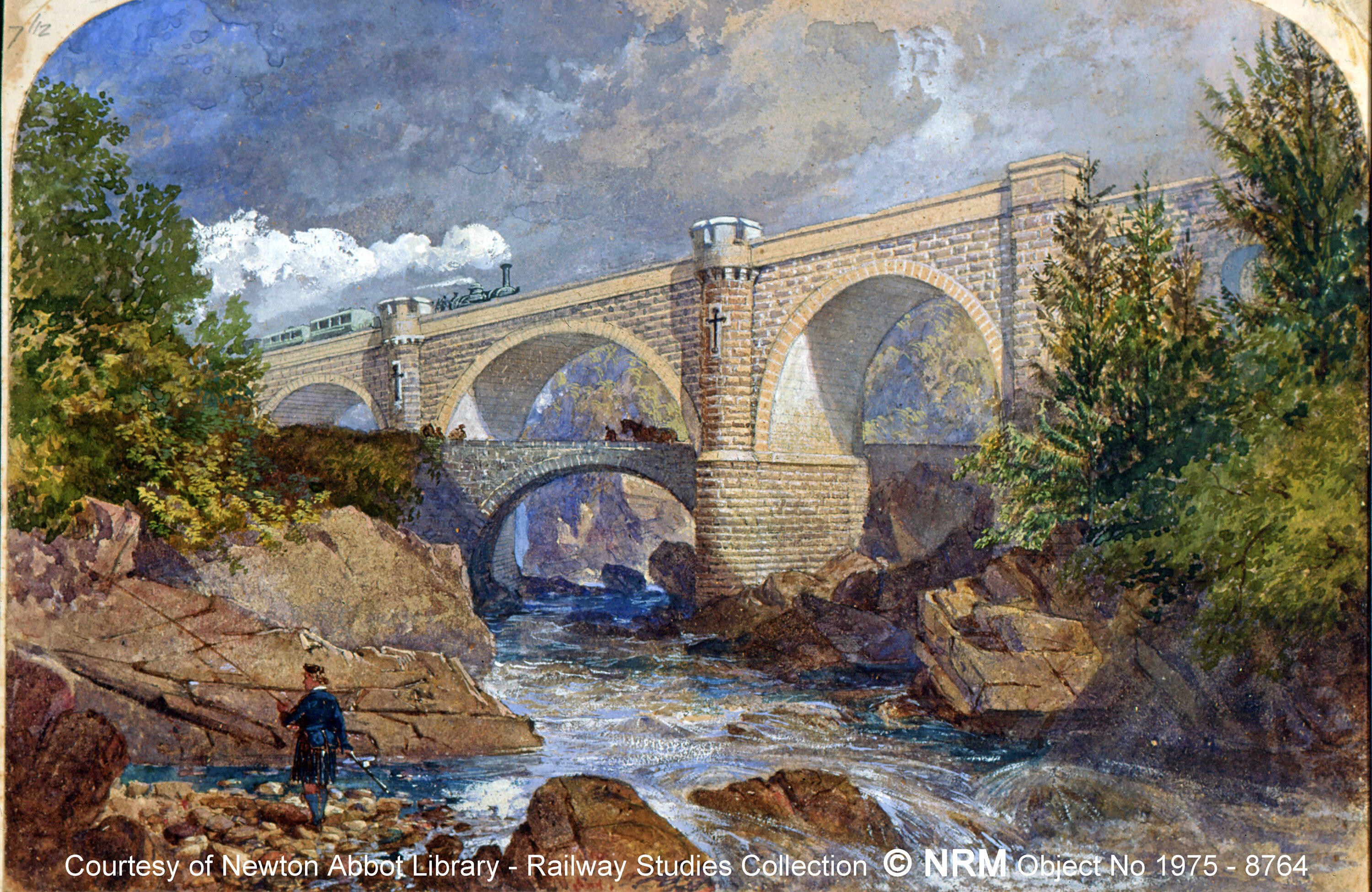

This amazing location has been the inspiration for many artists. Enclosed here are some of the works of art they created.
Image Credits:

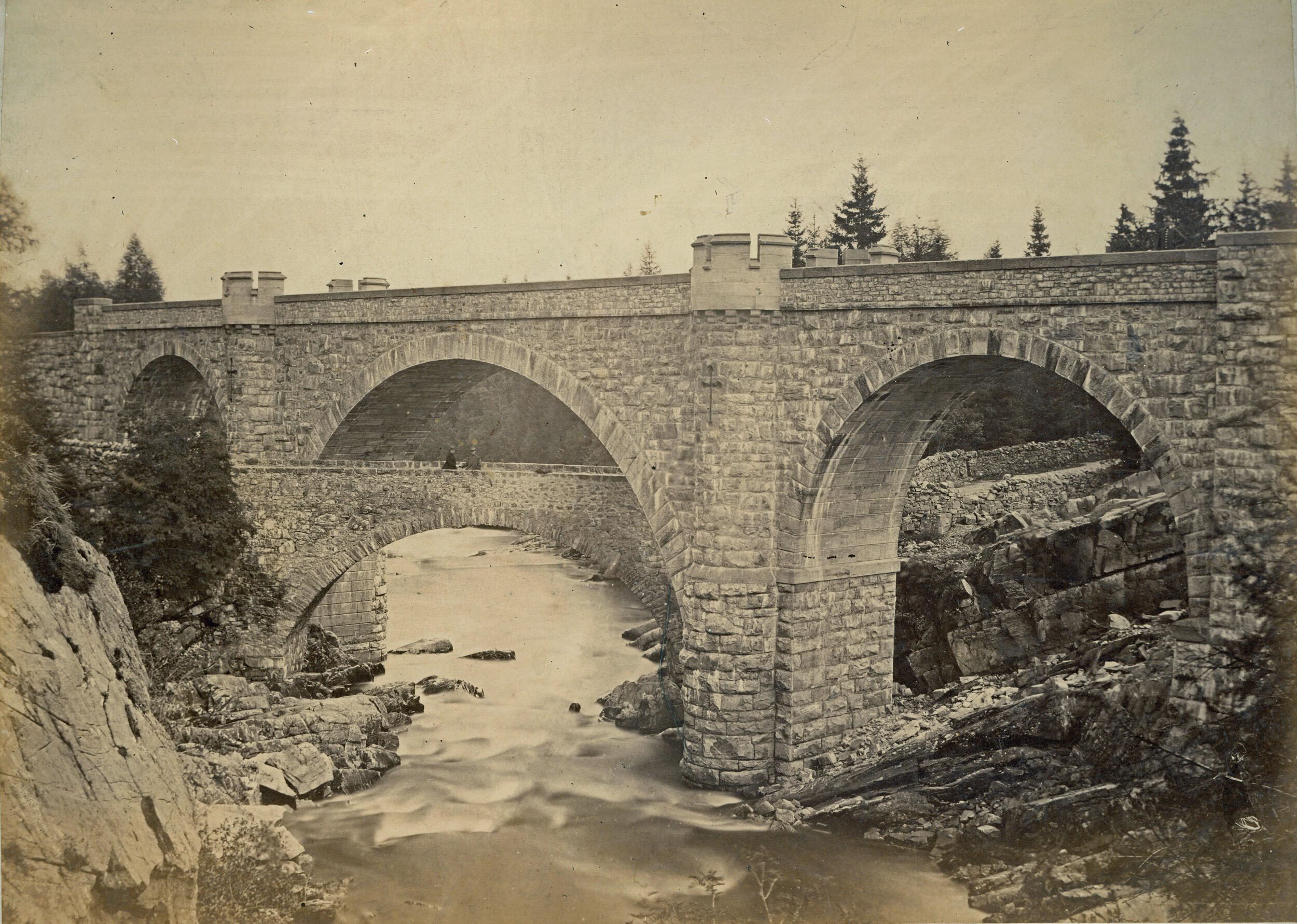

1864 photo by Whyte & Co. Inverness/Highland Railway Society collection
