Speymouth Viaduct
A single track viaduct on the Great North of Scotland Railway coast line that crosses the mouth of the river Spey at a height of only 3m above the water.
Region:
Red Wheel Site:
Transport Mode(s):
Address:
Near Kingston, Moray
Postcode:
Visitor Centre:
Website:
Visit website

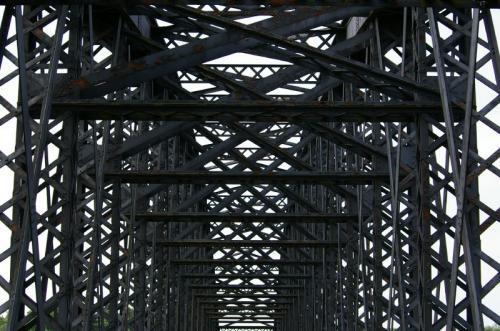

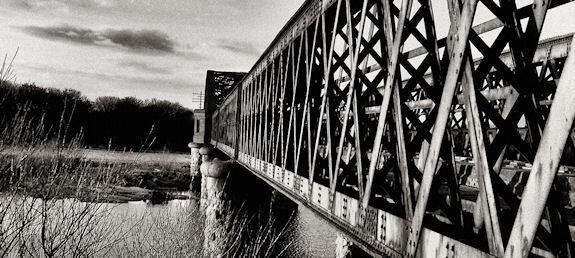

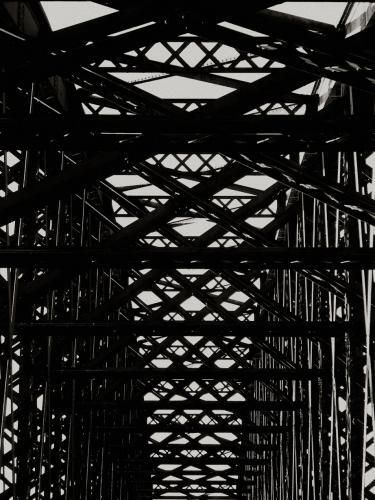

This long viaduct was built in 1886 to carry the single track coastal line of the Great North of Scotland Railway over the mouth of the river Spey . It is notable not only for its great length but also for its impressive diamond-lattice trusses on stone piers and its 350 ft. long hog-back truss supporting open box girders. It crosses the mouth of the river Spey at a height of only 3m above the water level.
The River Spey is unusual in that it increases speed as it flows closer to the coast, due to the surrounding geography. The mean flow is around 16 m/s making it the fastest flowing river in Scotland, possibly the UK. The Spey railway bridge was originally designed with the main span over the main flow of the river; however, before construction was completed the river had changed its course and was running at one end of the bridge.
It is now a footpath, on the Speyside Way.
By Road: East of Garmouth on the Speyside Way.
Biddle, Gordon, Britain's Historic Railway Buildings, Oxford University Press, ISBN-10: 0198662475 (2003)
Biddle, Gordon & Nock, O.S., The Railway Heritage of Britain : 150 years of railway architecture and engineering, Studio Editions, ISBN-10: 1851705953 (1990)
Biddle, Gordon and Simmons, J., The Oxford Companion to British Railway History, Oxford, ISBN 0 19 211697 5 (1997)
Bonavia, Michael, Historic Railway Sites in Britain, Hale, ISBN 0 7090 3156 4 (1987)
Conolly, W. Philip, British Railways Pre-Grouping Atlas And Gazetteer, Ian Allan Publishing, ISBN 0-7110-0320-3 (1958/97)
Jowett, Alan, Jowett's Railway Atlas of Great Britain and Ireland, Patrick Stephens Ltd. ISBN 1-8526-0086-1. (March 1989)
Morgan, Bryan, Railways: Civil Engineering, Arrow, ISBN 0 09 908180 6 (1973)
Morgan, Bryan, Railway Relics, Ian Allan, ISBN 0 7110 0092 1 (1969)
Simmons, J., The Railways of Britain, Macmillan, ISBN 0 333 40766 0 (1961-86)
Simmons, J. The Victorian Railway, Thames & Hudson, ISBN 0 500 25110X (1991)
Smith, Martin, British Railway Bridges and Viaducts, Ian Allan, ISBN 0 7110 2273 9 (1994)
Thomas, J. and Turnock, D. A Regional History of the Railways of Britain, North of Scotland. ISBN 0 946 537 02 8 (1975)
Turnock, David, An Historical Geography of Railways, Ashgate, ISBN 1 85928 450 7 (1998)
Vallance, H.T. The Great North of Scotland Railway (1965)
