Kings Norton Stop Lock

The only guillotine-gated stop lock on a British canal, built to stop water flowing from one canal to another.
West Midlands
Red Wheel Site:
Transport Mode(s):
Lifford Lane, Kings Norton, B13 0PY
B13 0PY
Visitor Centre:

About Kings Norton Stop Lock

The Stratford upon Avon Canal was built between 1793 and 1816 in two sections. The southern section starts at the River Avon in Stratford-upon-Avon in Warwickshire, and stretches north as far as Kingswood Junction near Lapworth, Warwickshire where it is connected to the Grand Union Canal by a short spur.

The northern section continues, to join the Worcester and Birmingham Canal at Kings Norton Junction in the suburbs of Birmingham.

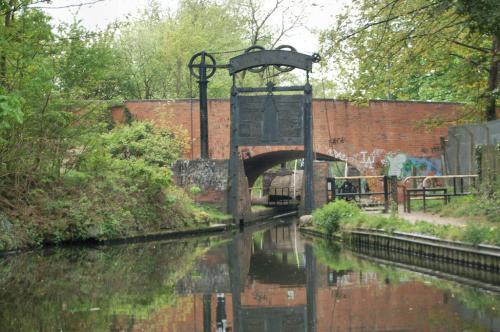

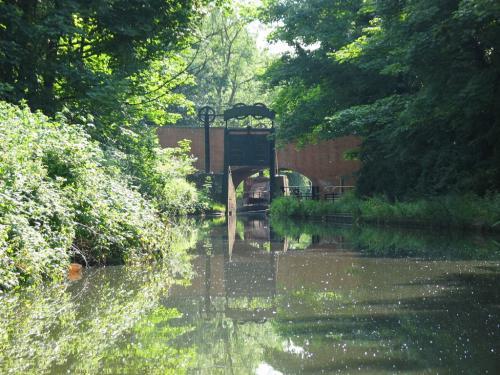

Kings Norton Stop Lock is a Grade II* Listed Building at Kings Norton Junction on the Stratford-upon-Avon Canal, near its junction with the Worcester and Birmingham Canal. It is the only guillotine-gated stop-lock on a canal.

This stop lock was built to prevent water flowing from one canal to another, regardless of which side was higher, but normally the Stratford-upon-Avon Canal was six inches higher. Canal companies were always concerned with the conservation of their own water supplies.There was also a toll house adjacent to the lock.

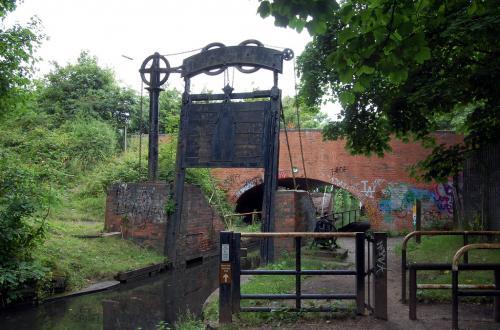

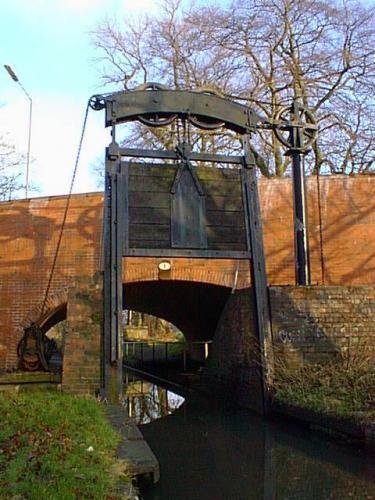

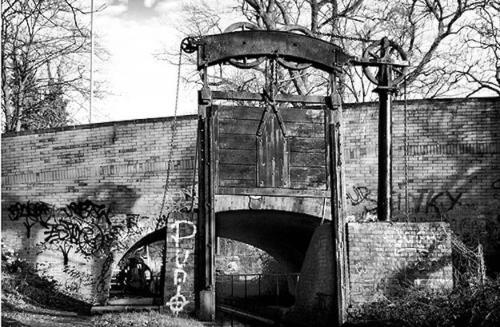

The wooden guillotine style gates are suspended in a slightly raked cast iron girder frame by a chain which passes through a small block on the gate. One end of the chain passes over two large wheels to a winch mechanism. The other end passes over two more large wheels to a hidden counterweight built into the side wall of the lock. There was no need for paddle gear to fill or empty the lock. With such a small difference in water level a guillotine gate could easily be lifted to let water flow in and out.

The existing gates probably date from 19th century. Since the nationalisation of the canals in 1948, water loss from one canal to another is less of an issue, so the gates are no longer in use and are both left open. The last recorded use of the gates was 1959.

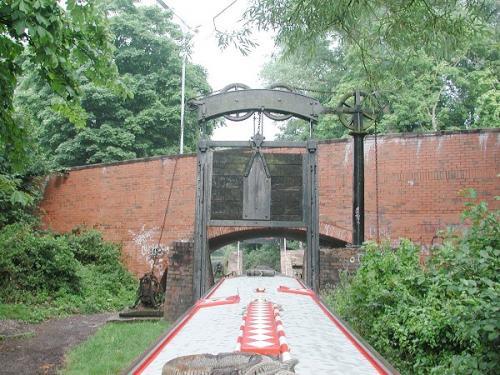

A bridge carries Lifford Lane over the lock, and hence the latter is sometimes referred to as Lifford Lane Stop Lock.

By road: Off A441, via Lifford Lane

Atterbury, Paul, English Rivers and Canals, Weidenfeld & Nicolson, ISBN. 0 297 78318 1 (1984)

Bartholomew, Nicholson, Inland Waterways Map of Great Britain, ISBN 978-00072 11173 (2006)

Boughey, Joseph, Hadfield’s British Canals: The Inland Waterways of Britain and Ireland, David & Charles, ISBN 978 18401 50247 (1998)

Boughey, J. and Hadfield, C.
, British Canals: A Standard History, David & Charles, ISBN 978-07524 46677 (2008)

Burton, A., The Waterways of Britain, Collins, ISBN 0 00 218047 2 (1983)

Elwin, G. C. Stratford-upon-Avon and Warwick Canals: The Canals from Birmingham Centre to Stratford-upon-Avon, Warwick, Leamington Spa and Braunston, Blackthorn, ISBN-10: 0950730319 (1981)

Gladwin, D.D., A Pictorial History of Canals, Batsford, ISBN 0 7134 0554 6 (1977)

Pratt, D.,
Waterways Past and Present: A Unique Record of Britain’s Waterways Heritage, Adlarde Coles, ISBN 978-07136 76341 (2006)

Pratt, F., Canal Architecture in Britain, British Waterways, ISBN 978- 09032 18139 (1976)

Roberts, B., Britain’s Waterways: A Unique Insight, GEOprojects, ISBN 978- 08635 11158 (2006)

Rolt, L. T. C., Inland Waterways of England, Allen & Unwin, ISBN-10: 0043860060 (1979)

Stratford upon Avon Canal Society, Upper Avon, 1630's-1970's: A Brief History and Guide with Details of Restoration, ISBN-10: 0950228001 (1972)

Ware, M.E., Britain’s Lost Commercial Waterways, Landmark, ISBN 978-18430 61816 (2005)
