Windsor Railway Bridge

The last surviving wrought iron bridge designed by Brunel.

Red Wheel Site:
Transport Mode(s):

Windsor Station, Thames Street, Windsor, SL4 1PJ.

Visitor Centre:

About Windsor Railway Bridge

Windsor Railway Bridge is a wrought iron 'bow and string' bridge in Windsor, Berkshire, designed by Isambard Kingdom Brunel. It carries the ex-GWR branch line from Slough to Windsor into Windsor and Eton Central station. It crosses the River Thames on the reach between Romney Lock and Boveney Lock.

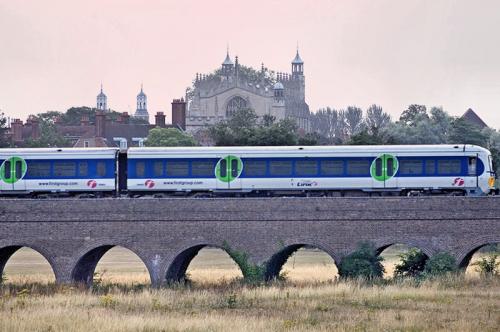

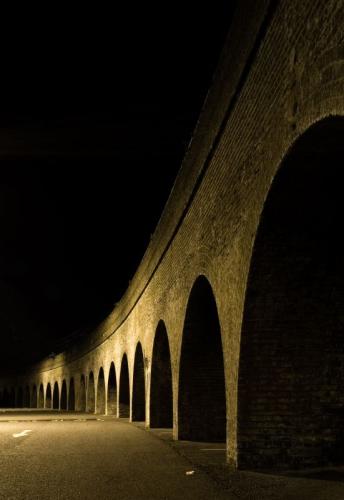

The line opened in 1849. The construction of the line was delayed and could not be included in the original Parliamentary Act because of objections from the Provost of Eton College. The brick viaduct leading to the bridge across marshy ground was constructed between 1861-65 to replace the original wooden trestle viaduct. The bridge contractor was Mr George Hannet.

Although the bridge was built to take two tracks, the track on the upstream side was removed when the line was rationalised in the 1960's. The trackbed on this side now carries a sewage or water main pipe.

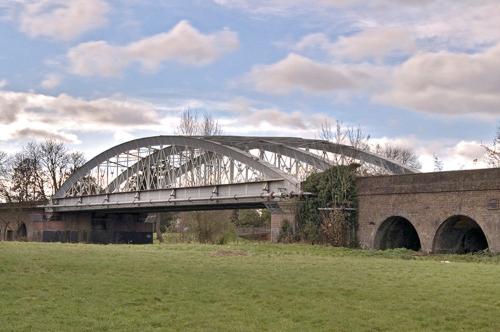

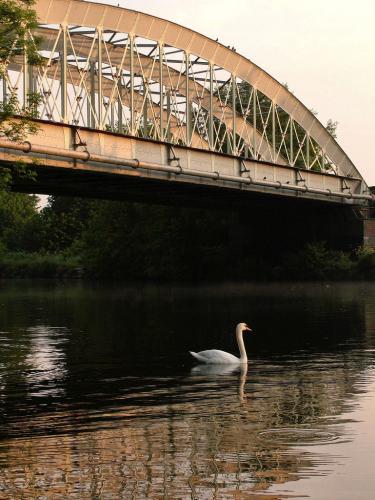

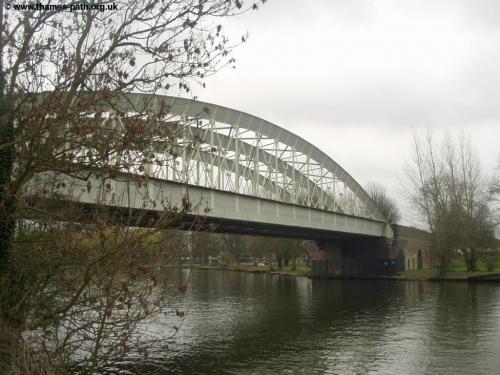

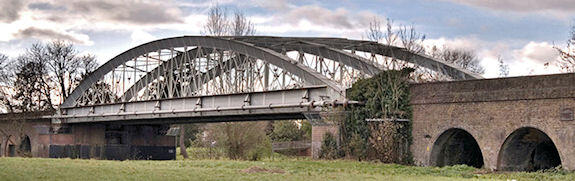

The bridge is a single-span structure comprising three bowstring trusses which created two bays for the original two GWR tracks. The bridge is the World's oldest wrought iron bridge still in regular service, and is a forerunner of Brunel's final masterpiece, the Royal Albert Bridge, Saltash. The bridge was Grade II* listed in 1975.

By road: The closest view is from Meadow Lane off the B3022 in Eton. It is also visible from A332 the road which leads from the M4 to Windsor.

By foot: On Thames Path National Trail

Becket, D. Brunel's Britain, David & Charles. ISBN-10 0715323601 (1980)

Biddle, Gordon, Britain's Historic Railway Buildings, Oxford University Press, ISBN-10: 0198662475

Biddle, Gordon & Nock, O.S., The Railway Heritage of Britain : 150 years of railway architecture and engineering, Studio Editions, ISBN-10: 1851705953 (1990)

Biddle, Gordon and Simmons, J., The Oxford Companion to British Railway History, Oxford, ISBN 0 19 211697 5 (1997)

Bonavia, Michael, Historic Railway Sites in Britain, Hale, ISBN 0 7090 3156 4 (1987)

Christiansen, R. A Regional History of the Railways of Britain, Thames and Severn. ISBN 0 7153 8004 4 (1981)

Conolly, W. Philip, British Railways Pre-Grouping Atlas And Gazetteer, Ian Allan Publishing, ISBN 0-7110-0320-3 (1958/97)

Jowett, Alan, Jowett's Railway Atlas of Great Britain and Ireland,  Patrick Stephens Ltd. ISBN 1-8526-0086-1. (March 1989)

Macdermot, E. History of the Great Western Railway. ISBN 0 7110 0411 0 (1989)

Morgan, Bryan, Railways: Civil Engineering, Arrow, ISBN 0 09 908180 6 (1973)

Morgan, Bryan, Railway Relics, Ian Allan, ISBN 0 7110 0092 1 (1969)

Simmons, J., The Railways of Britain, Macmillan, ISBN 0 333 40766 0 (1961-86)

Simmons, J. The Victorian Railway, Thames & Hudson, ISBN 0 500 25110X (1991)

Smith, Martin, British Railway Bridges and Viaducts, Ian Allan, ISBN 0 7110 2273 9 (1994)

Turnock, David, An Historical Geography of Railways, Ashgate, ISBN 1 85928 450 7 (1998)
