Glenesk viaduct, Midlothian
A graceful single-arch viaduct built for the Edinburgh & Dalkeith Railway that today carries the Borders Railway across the North Esk.
Region:
Red Wheel Site:
Transport Mode(s):
Address:
Glenarch House, Dalkeith
Postcode:
Visitor Centre:
Website:
Visit website

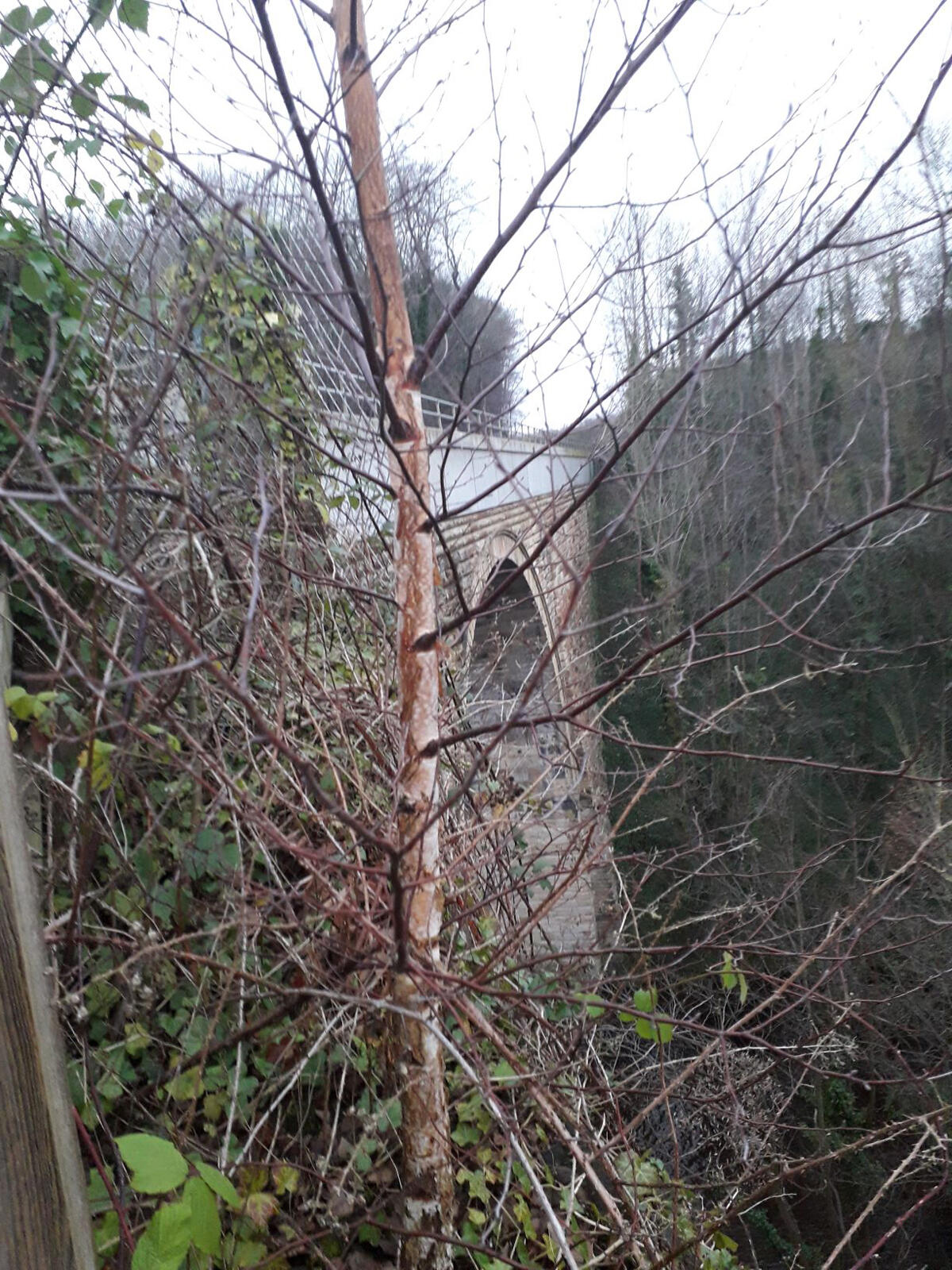

Consists of an 18.3m high, single semicircular, ashlar masonry arch, with a span of 19.8m and an original width of 4.5m between parapets. It is embellished with archivolts (moulding around the arch), tapering pilasters and extensive curved wing walls Paxton considers that the elevation of the bridge is reminiscent of the better of the bridges dating from the Highland Roads era in Scotland, many of which were constructed under Telford’s direction in the first three decades of the 19th century. In 1845, the Edinburgh & Dalkeith Railway was bought by North British Railway and upgraded for locomotive use. The width of the track gauge was increased to 1.435m under the direction of its engineer John Miller (1805-83). The line was re-opened in July 1847 and connected to Central Station at Waverley in Edinburgh via Portobello. At that time, the bridge deck had been widened to accommodate double tracks. A steel truss was inserted in the arch in 1968 to protect it against the possibility of subsidence from local coal mining. Tracks lifted after last freight train ran in 1972. Conservation work was carried out in 1993, when the bridge was turned over to pedestrian and cycle use, by the Edinburgh Green Belt Trust with a grant from the Railway Heritage Trust. The steel truss was removed, together with cantilevered footways that had probably been added by John Miller as part of the 1847 works. The bridge was heritage listed as Category B in January 1971 and upgraded to Category A in January 1994. Reopened 2015 with a single track to carry trains of the Borders Railway. |
walk from Dalkeith Town Centre
• John A Hassan, The Supply of Coal to Edinburgh, 1790–1850, Transport History 5 (1972), quoted in Robertson
• C J A Robertson, The Origins of the Scottish Railway System, 1722 – 1844, John Donald Publishers, Edinburgh, 1983, ISBN 978-0-85976-088-1
• Francis Whishaw, Railways of Great Britain and Ireland, John Weale, London, 1842, reprint by David and Charles, ISBN 0-7153-4786-1
• Christopher Awdry, Encyclopaedia of British Railway Companies, Patrick Stephens Limited, Wellingborough, 1990, ISBN 1-85260-049-7
• John Thomas, revised Alan J S Paterson, A Regional History of the Railways of Great Britain, Volume 6: Scotland, The Lowlands and The Borders, second edition 1984, David and Charles, Newton Abbot, ISBN 0-946537-12-7
• W and E A Munro, Lost Railways of Midlothian, self-published, 1985
• Lewin
• Roland Paxton and Jim Shipway, Civil Engineering Heritage: Scotland, Lowlands and Borders, Thomas Telford, Limited, London, 2009 (reprint), ISBN 978-0-7277-3487-7
• Act 8&9 Vict c82 1845, quoted in Robertson
• Railscot - A History of Britain's Railways,
• R F Carter, An Historical Geography of the Railways of Great Britain, Cassell, London, 1959)
• Col M H Cobb, The Railways of Great Britain, a Historical Atlas, Ian Allan Publishing Ltd, Shepperton, 2003, ISBN 07110 3003 0
• John Johnstone, The Schoolmaster and Edinburgh Weekly Magazine, 4 August 1832
• Joseph Priestley, A Historical Account of the Navigable Rivers, Canals, and Railways, of Great Britain, Longman, Rees, Orme, Brown & Green, London, 1831,
• Leslie James, A Chronology of the Construction of Britain's Railways, 1778 - 1855, Ian Allan Limited, Shepperton, 1983, ISBN 0 7110 1277 6
• Ordnance Survey, One-inch Survey, Sheet 32, "Edinburgh", published 1857; and 25-inch mapping: Edinburghshire, Sheet 014.07 etc, surveyed 1892
• David Bremner, The Industries of Scotland, Their Rise, Progress and Present Condition, Adam and Charles Black, Edinburgh, 1869
• Chambers Edinburgh Journal, 5 October 1833, quoted in Robertson
• M E Quick, Railway Passenger Stations in England Scotland and Wales—A Chronology, The Railway and Canal Historical Society, 2002
• Parliamentary Papers quoted in Robertson
• Railway Times, 3 August 1844, quoted in Robertson
• Innocent Railway - Last Train (© Ron Leckie, 1968),
• Transport Scotland, Borders Railway, at
• Royal Commission on the Ancient and Historical Monuments of Scotland: Braid Burn Railway Bridge
• Robertson, quoting Bremner
