"Hyper" Concrete Roof - Service Station A1 - Markham Moor

A filling station for the 1960s by architect Sam Scorer and engineer Kalman Hajnal-Konyi, incorporating a hyperbolic paraboloid concrete roof - now a Starbucks cafe


Region:
Nottinghamshire
Red Wheel Site:
Yes
Transport Mode(s):
Road
Address:

Starbucks Cafe

North of A1,

Markham Moor,

Nottinghamshire

Postcode:
DN22 0QU
Visitor Centre:
No
Website:

About "Hyper" Concrete Roof - Service Station A1 - Markham Moor

The National Transport Trust decided this highly visible and unusual structure was worthy of a Red Wheel, reflecting as it does the new dynamism of the 1960’s and the enthusiasm for all things ‘road’.  Britain’s first motorway, the Preston bypass, had opened in 1958 whilst the first part of the M1 opened in 1959.  Scorer’s petrol station truly reflected that new optimism following the post-war years and the Trust is delighted to celebrate this survivor of a period now sadly often neglected.

The canopy to the former petrol filling station, constructed in 1960-61 to designs by architect Hugh Segar (Sam) Scorer and structural engineer Dr Hajnal-Kónyi, is listed at Grade II for the following principal reasons:

Technical innovation: it is a particularly direct example of a hyperbolic paraboloid roof, an unusual and dramatic roof solution which was then being experimented with by a number of architects and engineers all over the world.

Architectural interest: it is a dramatic piece of concrete design which displays the hyperbolic paraboloid form in a daring manner.

Architectural authorship: the team of Scorer and Hajnal-Kónyi was advanced in the design of hyperbolic paraboloids. Scorer is chiefly remembered today for his three buildings that are substantially roofed in hyperbolic paraboloid shells, two of which are listed, one at Grade II*. * Architectural distinction: during a period when standardisation of petrol stations was introduced as an aid to product recognition, the example at Markham Moor is unique by virtue of its technical innovation and individual design.

Rarity: it is one of few extant hyperbolic paraboloid shell structures from the 1950s and 1960s.  Intactness: The canopy and four structural supports remain intact and uncompromised by the inserted building beneath.

History: The canopy, once part of a former petrol filling station, was built in 1960-1 by Hugh Segar (Sam) Scorer, of Denis Clarke Hall, Scorer and Bright, for Messrs. A. H. Turner Ltd. The total cost was £4,500. The canopy takes the form of a hyperbolic paraboloid shell roof, also known as a saddle roof because of its distinctive shape. An article in Concrete and Constructional Engineering (February 1962) shows the simplicity of the original structure. Thin shell concrete roofs were invented in Germany around the 1920s, as a means of achieving large spans with limited materials and at low cost. The strength of the roof lies in its shape, and the way it carries the loads by the forces exerted in the planes of the shell, rather than by the weight of their materials. The first shell roofs were simple barrel vaults. One of the first engineers to specialise in concrete shell techniques in Britain was the German refugee Dr K Hajnal-Kónyi, who arrived in London in 1936, and who went on to work extensively with Sam Scorer. Scorer became fascinated by the possibilities of shell roofs as a student, and designed a hyperboloic paraboloid roof as early as 1956 on a water tower in Ilkeston, Derbyshire.  The distinctive appearance of the canopy at Markham Moor gave it landmark status during the 1960s and 70s. In the late 1980s it ceased to be used as a garage, and a roadside Little Chef restaurant was built beneath the canopy and was later empty for some years. Now a Starbucks coffee shop.

Details
MATERIALS: Concrete cast in-situ.

PLAN: Rhomboid, 60 ft square on plan.

EXTERIOR: The canopy is a hyperbolic paraboloid shell structure. It has sharp fins that point skywards while the sides sweep low towards the ground. Its form can be likened to a handkerchief, with two corners rising to apexes of 37 feet 4 inches above the ground, while the two opposite corners are only 5 feet above ground. At the dip in the centre, the height is 18 ft 6 in. The canopy is supported on its lower edges by four, simple concrete stanchions. A single-storey restaurant building in brick was built beneath the canopy in the 1980s. This has plain elevations with deep fascias, lit by large areas of glazing on the principal façades. The restaurant building does not have special interest and is excluded from the listing.

Source: Historic England

Photo credits:

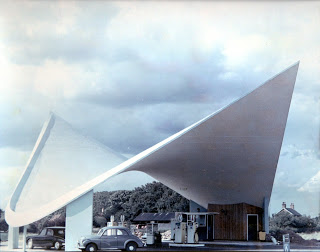

1960s Photo: (As petrol station) Sam Scorer (Dec'd)

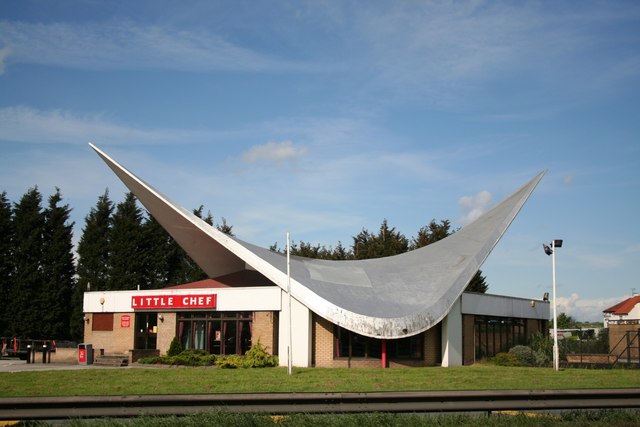

1990s Photo (Little Chef): Richard Croft - Creative Commons Licence.

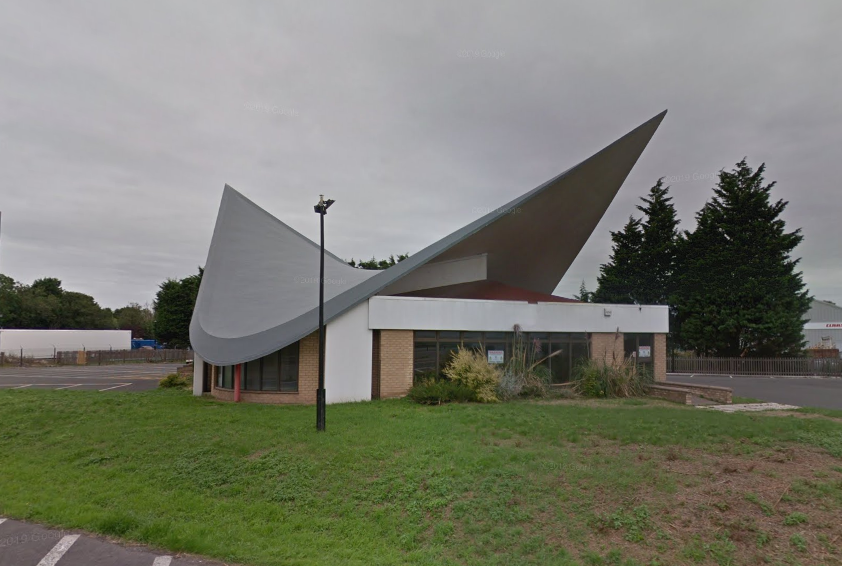

2010: Photo (Dissused)  Google

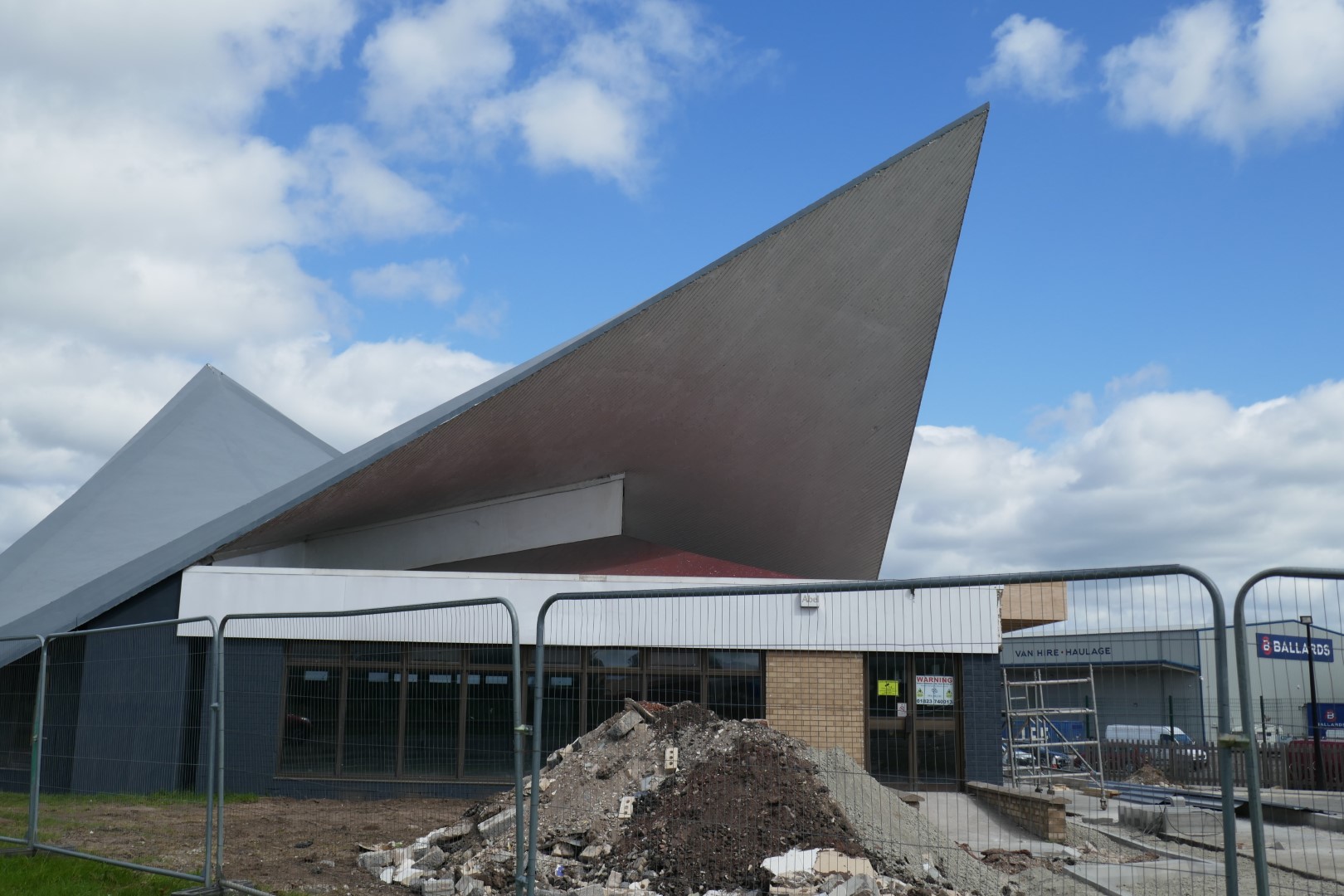

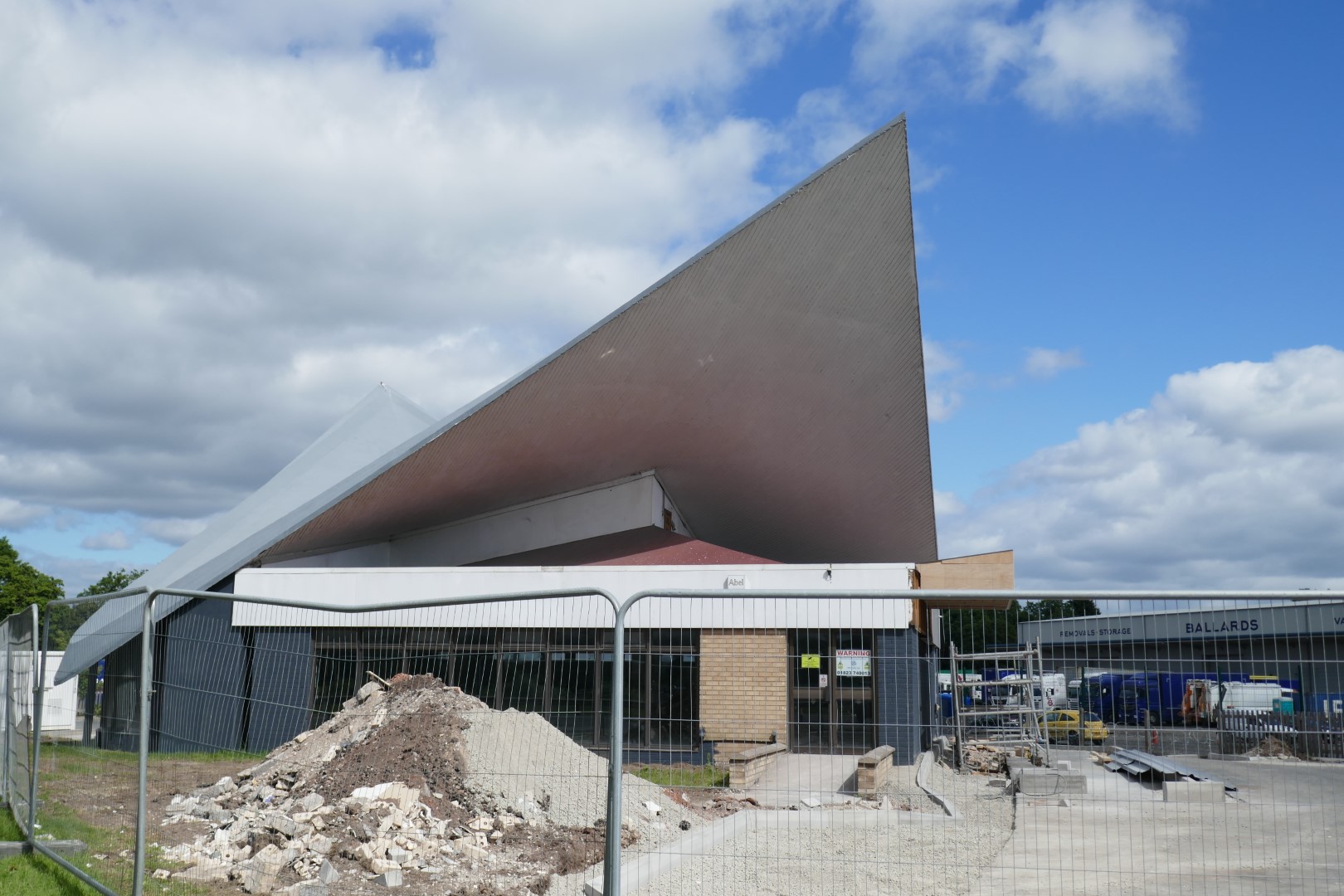

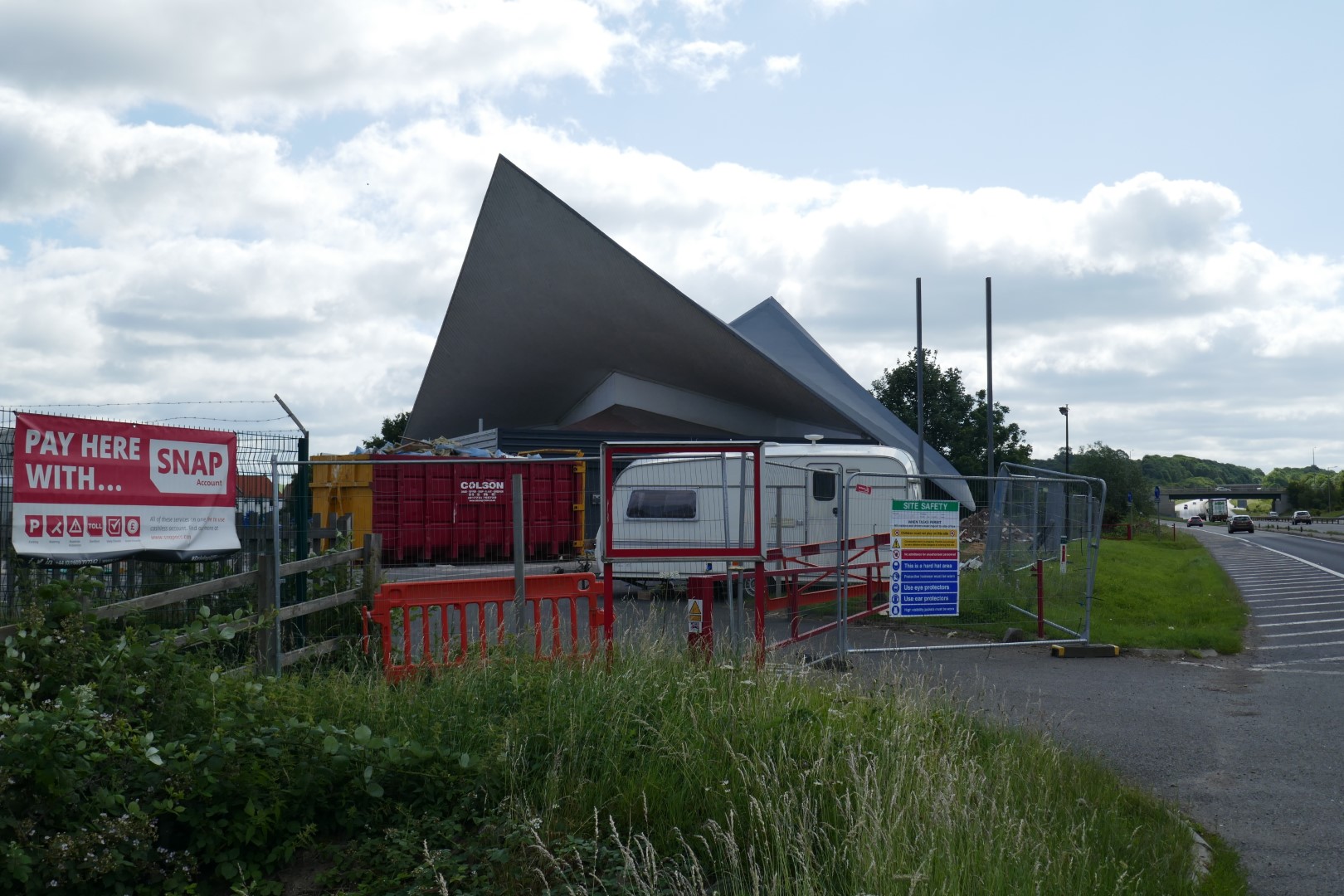

2019 3 photos (Renovation) Peter Stone

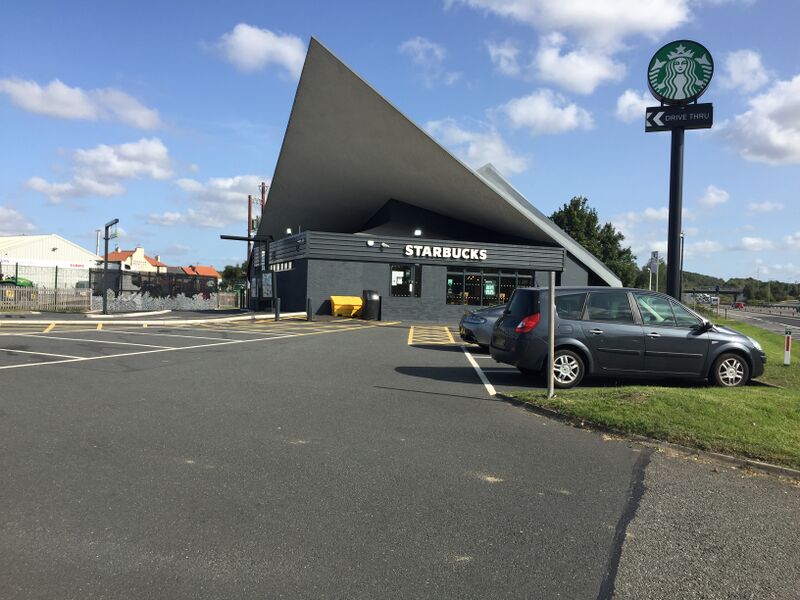

2020 Photo: (Starbucks drive through coffee shop) Rich

Accessible from the A1 Southbound at Markham Moor Services

Rosa, J, Albert Frey: Architect, (1999)
Concrete and Constructional Engineering, vol.57, no.2, pp.78-9 , (February 1962)

Anchor, R.D. (1996) ‘Concrete shell roof, 1945– 1965,’ in Proceedings of the Institute of Civil Engineers. Structures & Buildings, vol.116, nos.3/4, pp.381‑9.

Boyd, R. (1958) ‘Engineering of excitement’, Architectural Review, vol.124, pp.295–308.

‘Fashionable yet functional’, The Times, 2 November (1962), p.8. Hodgkinson, J. (2010) .

Saint, A. (1991) ‘Some thoughts about the architectural use of concrete’, in AA files, pp.21–2, 3–12, 3–16.

Scorer, H.S. (1961) ‘Hyperbolic paraboloids’, Reinforced Concrete Review, December, pp.733–92.

Wainwright, M. (2004) ‘Preservation bid for innovative 1950s motorway café’, The Guardian, 5 January,
